| Product Attribute | Attribute Value |
|---|---|
| Part Number | STF40NF20 |
| Manufacturer | STMicroelectronics |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |

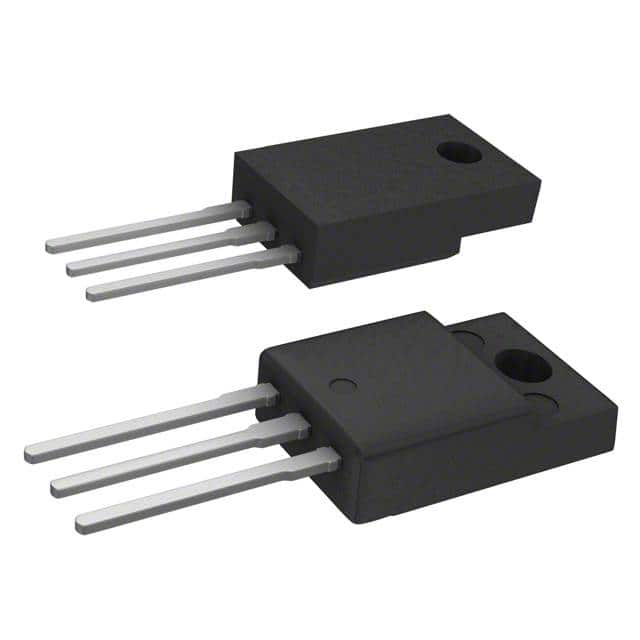

| Supplier Device Package | TO-220FP |
| Series | STripFET™ |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 20A, 10V |
| Power Dissipation (Max) | 40W (Tc) |
| Package / Case | TO-220-3 Full Pack |
| Package | Tube |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Input Capacitance (Ciss) (Max) @ Vds | 2500 pF @ 25 V |
| Gate Charge (Qg) (Max) @ Vgs | 75 nC @ 10 V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Base Product Number | STF40 |
